INFORMATION SHEET

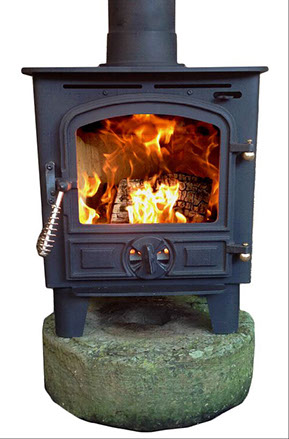

3B WOOD BURNING STOVE

22-05-15







SILENT SIMPLICITY JUST FOR YOU



• Superb Wood Burner

It’s a true wood burning stove with a large deep combustion chamber capable of holding quite a large load of wood fuel.

Cook and simmer on the top plate, heat your boat with a dry version or  produce hot water with the boiler version.



• Ash Cleanliness

The special internal design of the combustion chamber and front fret constrains ash where it should be, inside the stove and not on the hearth in front of it.



• Super Combustion

The large capacity firebox and high temperature ling system is designed to provide much better combustion and a longer burn time allowing the stove to squeeze the last drop of heat from your fuel.

The fire bottom is set deep down below the solid front fret allowing for good quantities of fuel to be loaded making all night burning a possibility.

 Good quality seasoned hardwood is required.



• Clean Combustion

Two controlled air routes into the stove.

Air wash air to help keep the door glass clean.

Over fire air for wood burning.





• Additional Features

Fully adjustable door hinges.

Fully adjustable door lock.

Stay cool easy to use door handle.

Stainless steel front fret.

Stainless steel baffle plate.

Plain or cook top hot plate.



• Optional Extras

Stove Top Fan.

Wood Fuel Humidity Tester.

Fiddle Rail.

Variety of Log Baskets.

Cook Top Kettle.

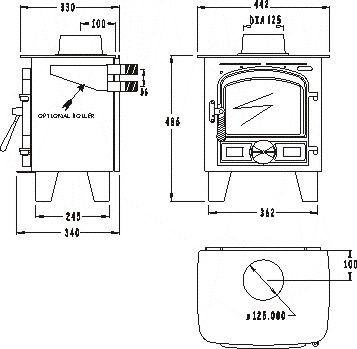

• Dimensions.



• About the Stove

For fellow enthusiasts of Sustainable Living, the 3B Wood Burning Stove is designed to generate and maintain high combustion chamber temperatures and is both clean and easy to use.



High temperature combustion ensures that most of the fuel is burnt so reducing smoke, tar and particulate emissions which are currently causing concern with air pollution.



High temperature combustion is achieved by the careful use of high performance firebrick linings which fit on the inside of the firebox and front fret designed to allow the combustion chamber to achieve and maintain a high operating temperature as quickly as possible.



The 3B Wood Burning Stove incorporates two separate air inlet controls:-

Air Wash System operated by a simple lever control.



Secondary Overfire Air System for wood burning.



These simple yet highly effective controls provide the user with the necessary tools to achieve a steady, high degree of temperature control and this type of control is commonly used across the entire range of Bubble Solid Fuel Stoves and Cookers.



Ash spillage, leakage and resultant mess is a major problem on boats and in small spaces; as a consequence we have designed features into the stove to mitigate this problem.



Bubble Stoves can significantly reduce your running costs and produce the most amazing pyrotechnics which demonstrate our technology at work.

Simple to use and simple to maintain.



Our stoves will keep you warm and give you many hours of fun and pleasure.



GREEN ENERGY when wood burning.



WEIGHT.

Dry Stove  50kg

Wet Stove  60kg

Designed and manufactured in the U.K. by Boaters for Boaters.
